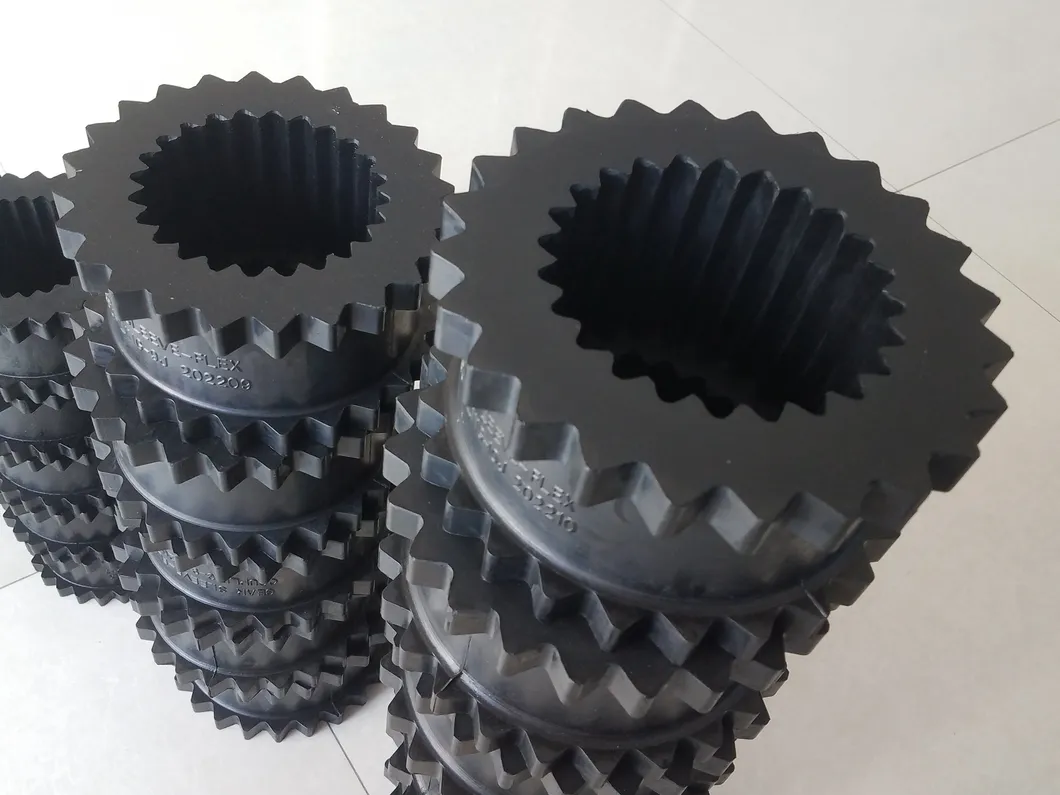

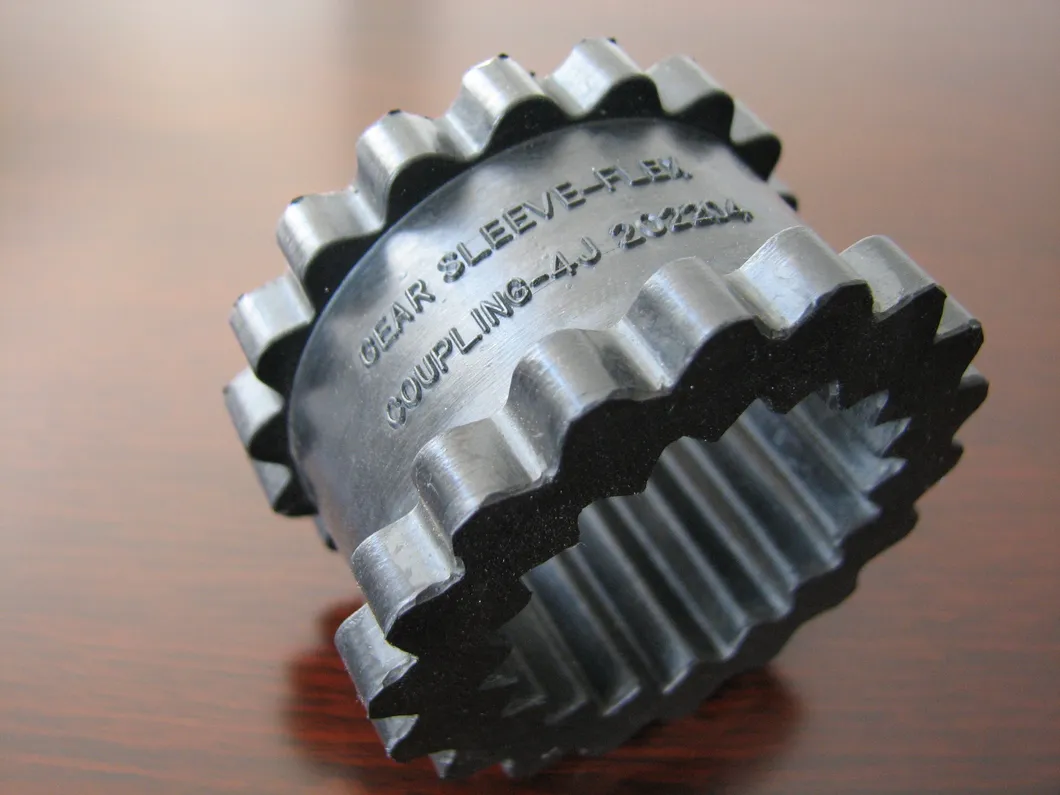

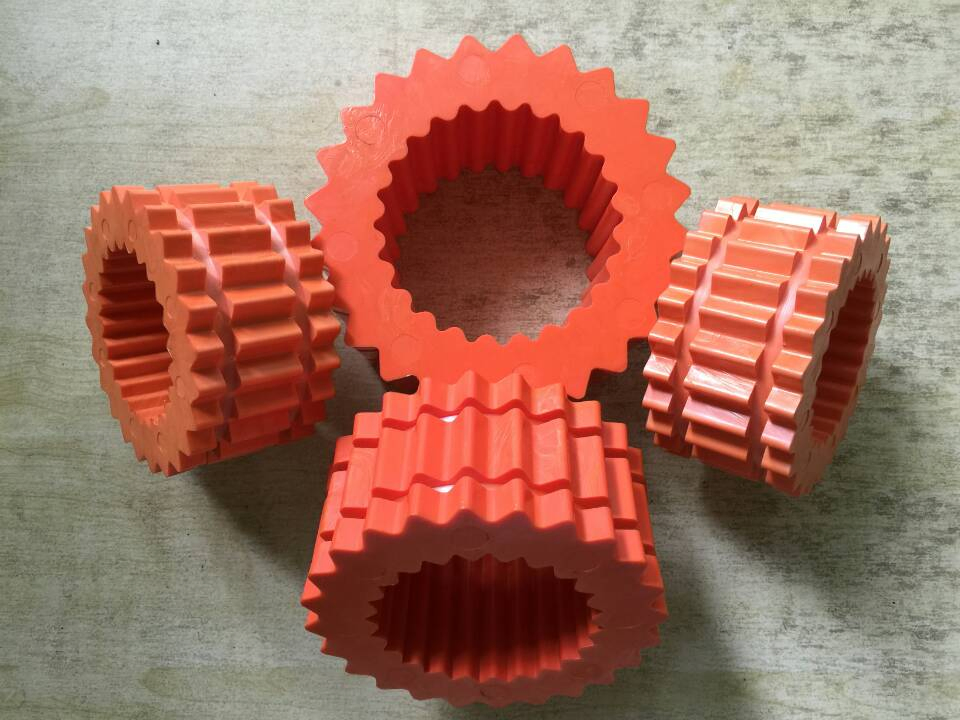

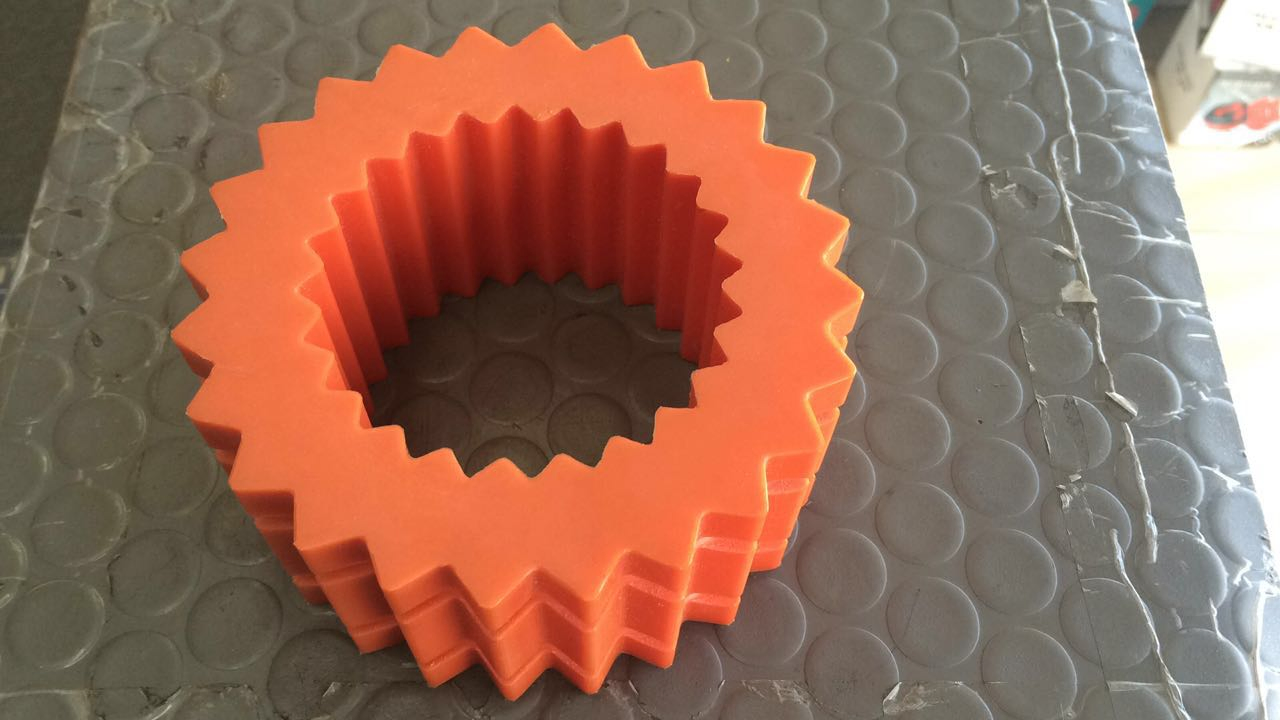

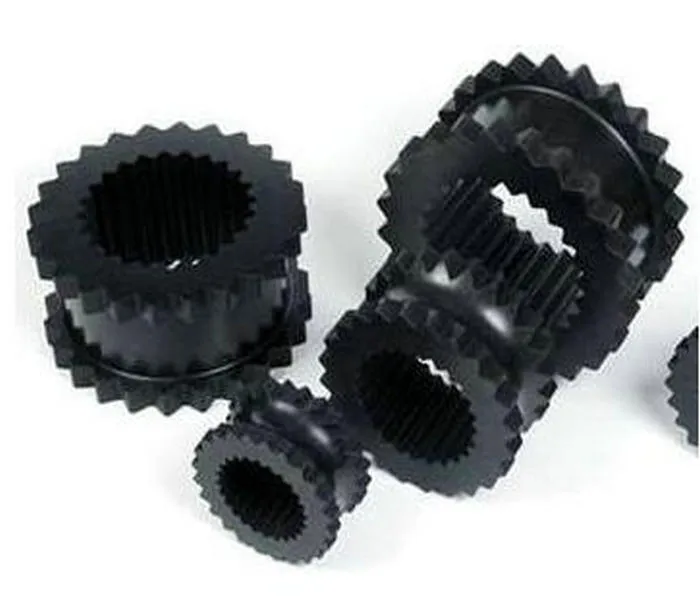

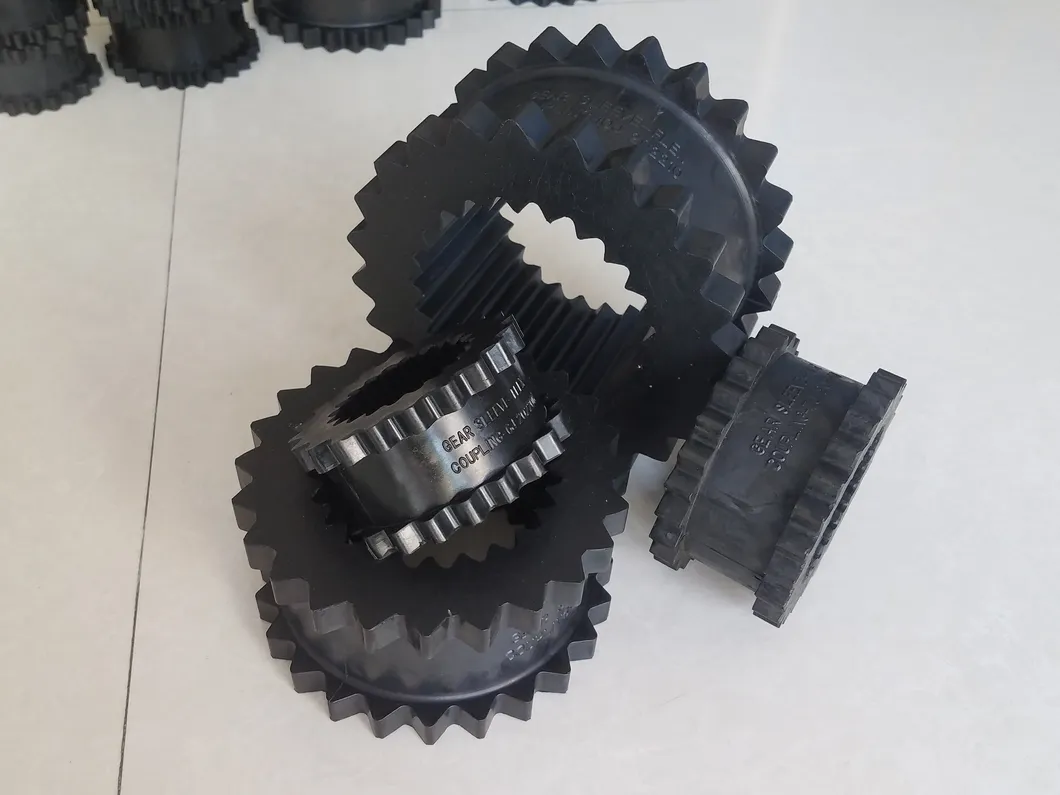

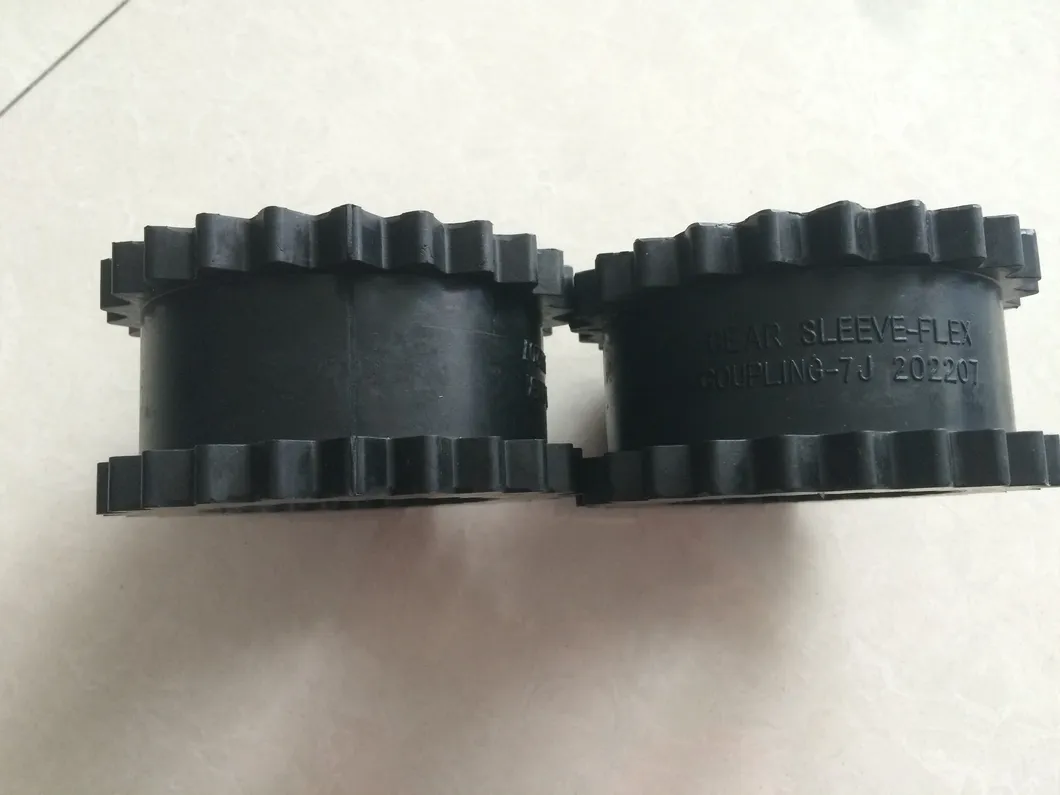

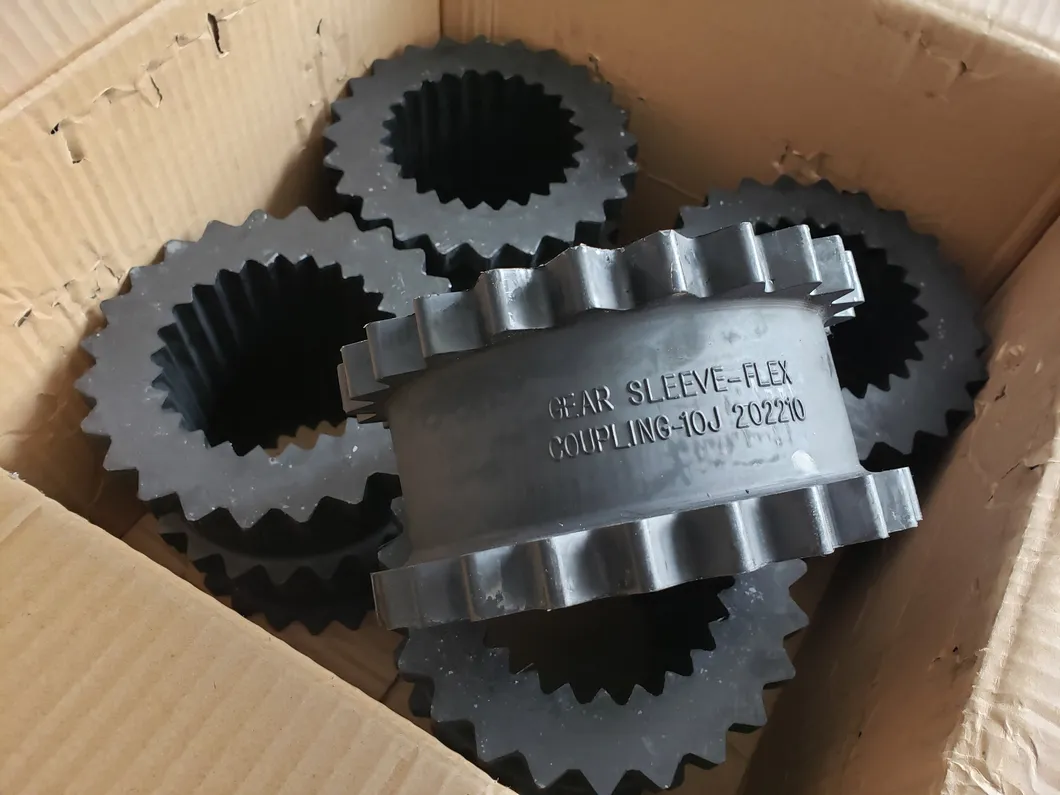

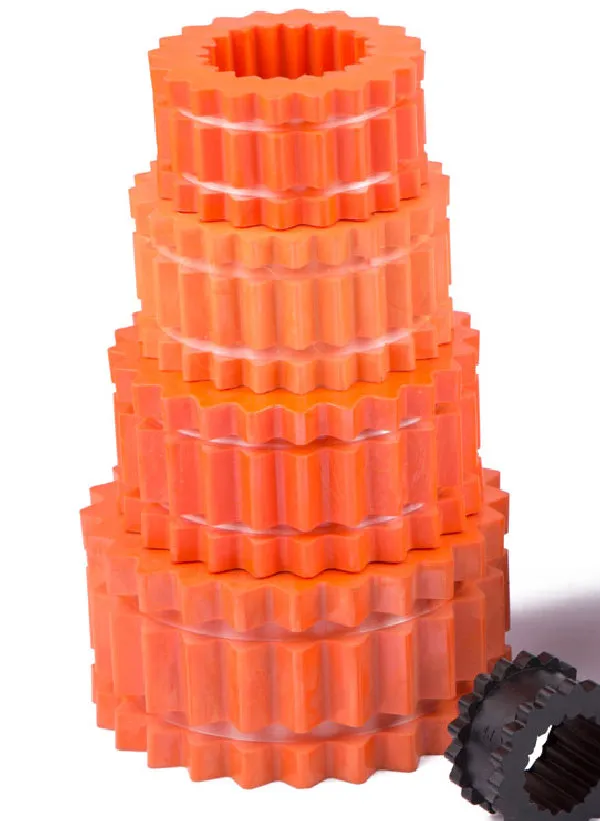

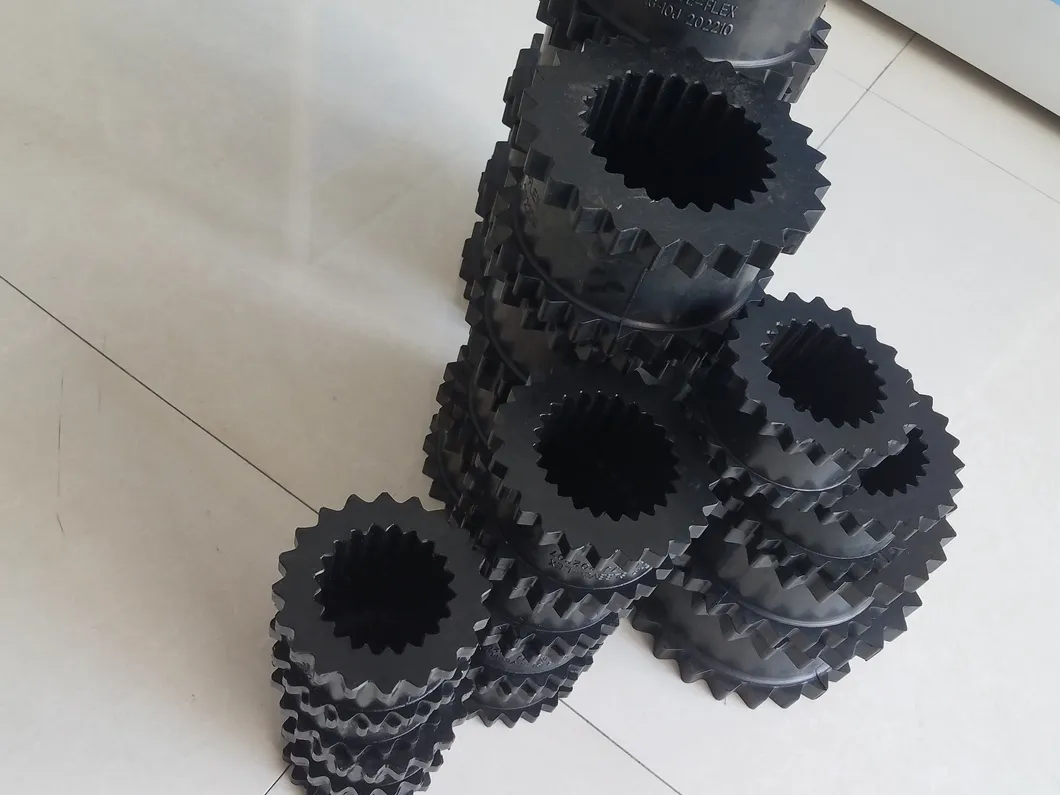

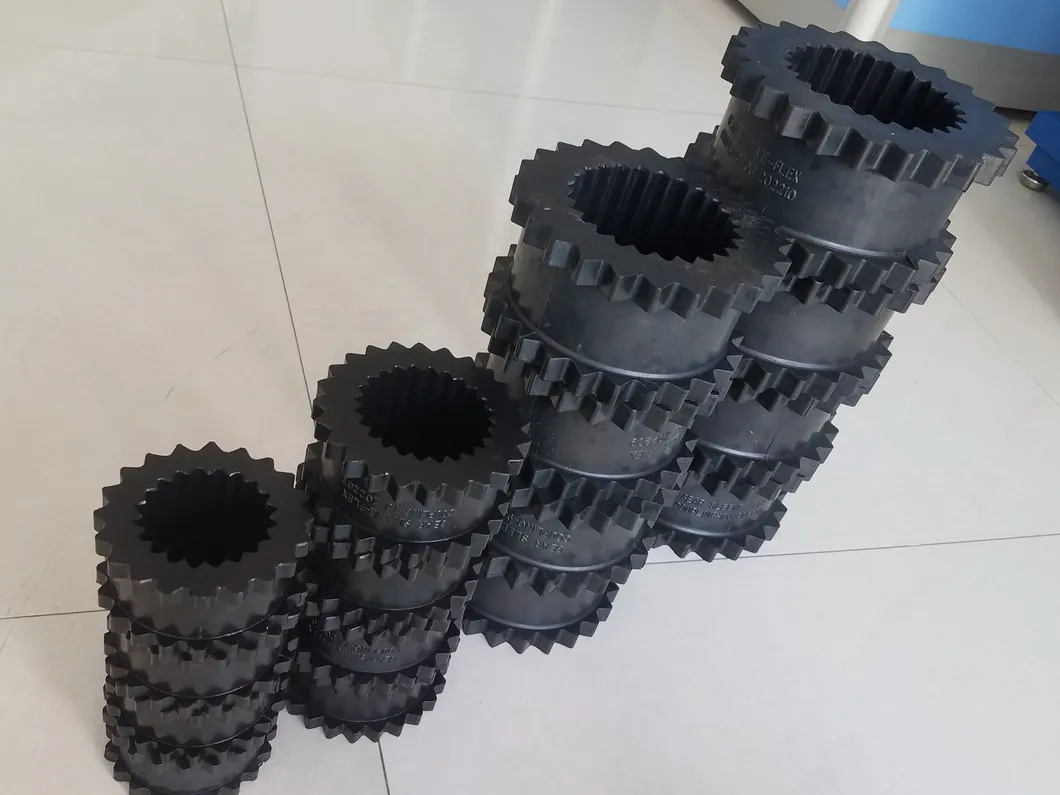

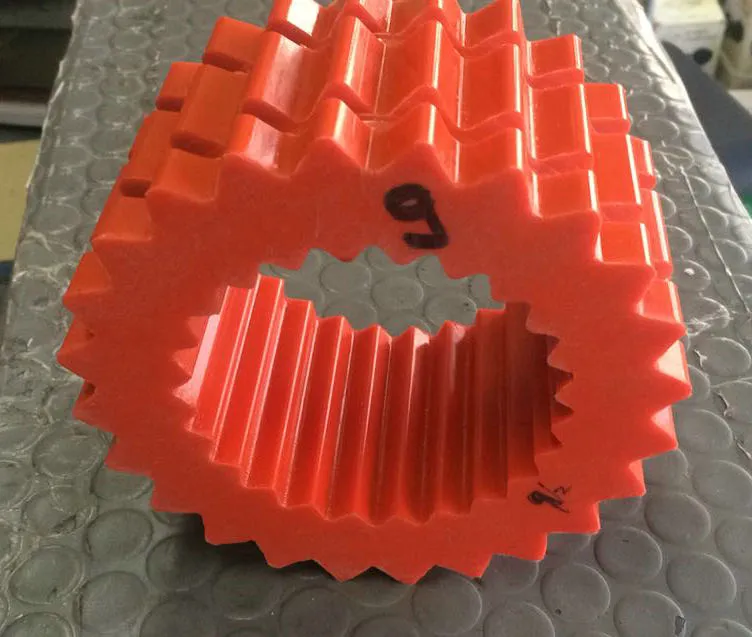

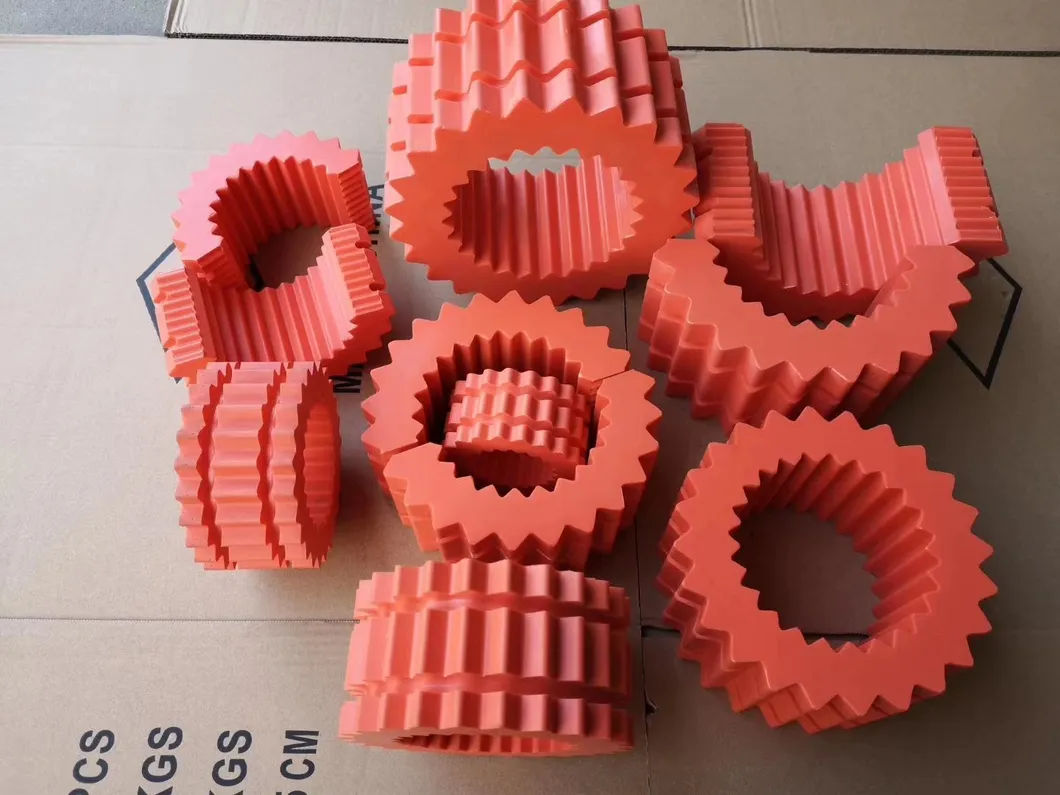

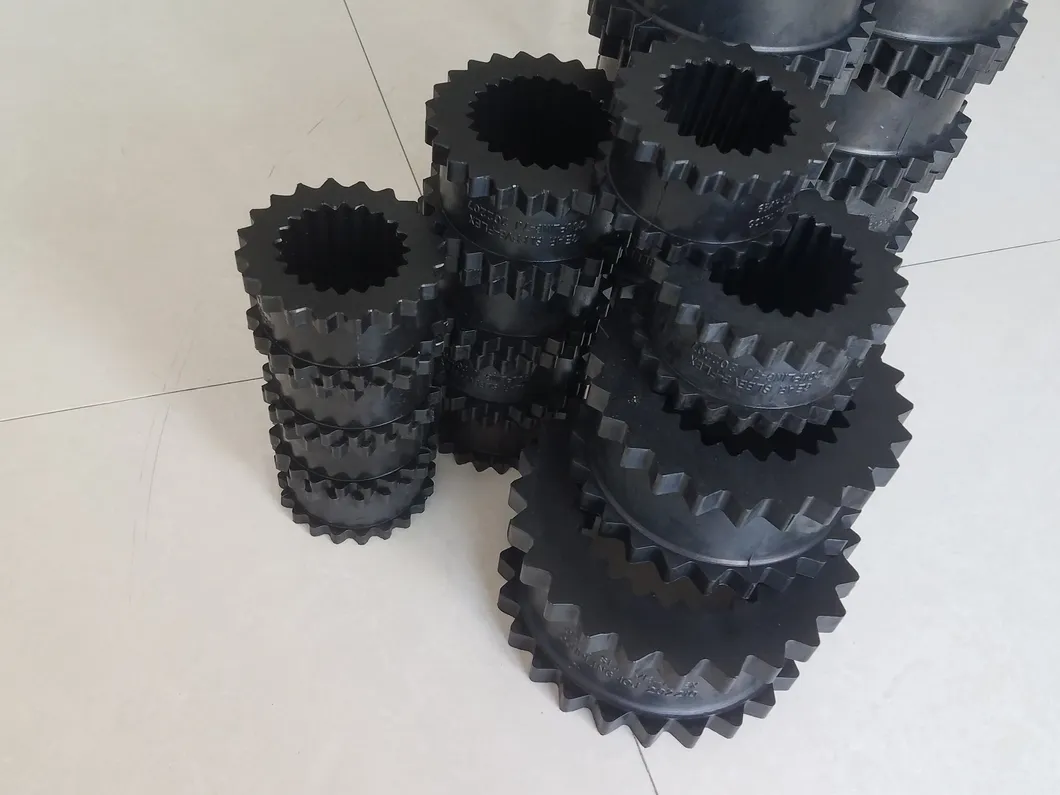

High Quality 4h-11h Hytrel Coupling Element by DuPont Hypalon Material with Red Color
4H - 11H Hytrel Coupling Element, Sure-Flex Element Made by Dupont Hypalon Material 1.Hytrel Sleeves for Sure-Flex Couplings.2.High performance accomodates high temperature.3.All-purpose designed Sure-Flex Coupling for torsionally flexible power transmission.4.The outside diameter is 117mm.5.The nor......
Send Inquiry
Product Description
4H - 11H Hytrel Coupling Element, Sure-Flex Element Made by Dupont Hypalon Material
1.Hytrel Sleeves for Sure-Flex Couplings.
2.High performance accomodates high temperature.
3.All-purpose designed Sure-Flex Coupling for torsionally flexible power transmission.
4.The outside diameter is 117mm.
5.The norminal torque is 324.83Nm.
| Item | Gear 11H | Gear 9H | Gear 8H | Gear 7H | Gear 6H | Gear 5H | Gear 4H |
| Gear OD(mm) | 208 | 152 | 129 | 110 | 95.3 | 74.6 | 58.7 |
| Gear ID(mm) | 122.3 | 87 | 75 | 64.5 | 54.6 | 44 | 34 |
| Thickness(mm) | 101.6 | 76.2 | 63.5 | 55.6 | 47.6 | 39.7 | 31.8 |
| Gear Quantity(piece) | 24 | 24 | 24 | 24 | 20 | 20 | 18 |
| Weight(g/piece) | 2500 | 800 | 500 | 300 | 200 | 95 | 50 |
Other standard coupling as following:
standard size for polyurethane coupling:
GR14, GR19, GR24, GR28, GR38, GR42, GR48, GR55, GR65, GR75, GR90, GR100, GR110, GR125, GR140, GR160, GR180
GS14, GS19, GS24, GS28, GS38, GS42, GS48, GS55, GS65, GS75, GS90, GS100, GS110, GS125, GS140, GS160, GS180
MT1, MT2, MT3, MT4, MT5, MT6, MT7, MT8, MT9, MT10, MT11, MT12, MT13
ML1, ML2, ML3, ML4, ML5, ML6, ML7, ML8, ML9, ML10, ML11, ML12, ML13
MH45, MH55, MH65, MH80, MH90, MH115, MH130, MH145, MH175, MH200
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225, L276
FALK-R 10R, 20R, 30R, 40R, 50R, 60R, 70R, 80R
T40, T45, T50, T55, T60, T65, T70, T75, T80, T85, T90, T95, T100, T105, T108, T110, T115, T120, T125, T130, T135, T140, T145, T150, T154, T170, T185, T190, T210
standard size for rubber coupling:
Hb80, Hb95, Hb110, Hb125, Hb140, Hb160, Hb180, Hb200, Hb240, Hb280, Hb315
HRC70, HRC90, HRC110, HRC130, HRC150, HRC180, HRC230, HRC280
L35, L50, L70, L75, L90/95, L99/100, L110, L150, L190, L225
NM50, NM67, NM82, NM97, NM112, NM128, NM148, NM168, NM194, NM214, NM240, NM265
Gear 3J, 4J, 5J, 6J, 7J, 8J, 9J, 10J, 11J
special size build molding according to the buyer's drawings
standard size for nylon coupling:
NL1, NL2, NL3, NL4, NL5, NL6, NL7, NL8, NL9, NL10
special size build molding according to the buyer's drawings
***when you enquiry, pls confirm product's number and quantity***
