Fig 1502 API Butt Welded Hammer Union
FIG 1502 API Butt Welded Hammer UnionFIG 1502 Hammer Union is designed to connect mud tanks immediately without having to deal with flange connections. If the storage tank is not aligned in the correct way, the necessary hammer union can still be used to ensure an absolute leak-free seal. FIG 1502 H......
Send Inquiry
Product Description

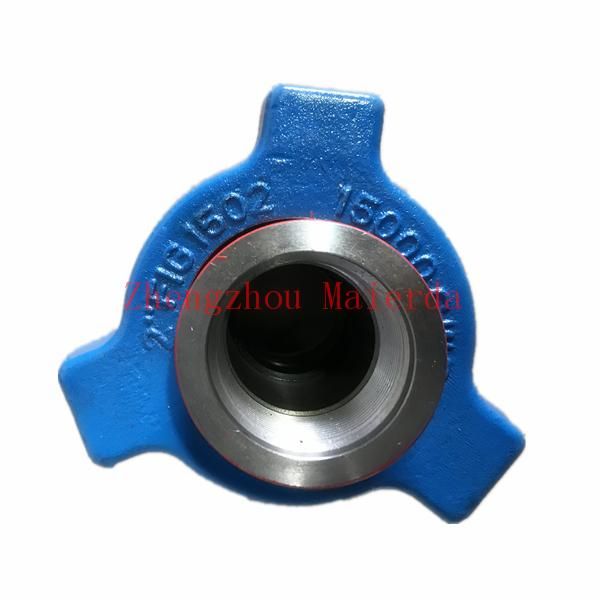

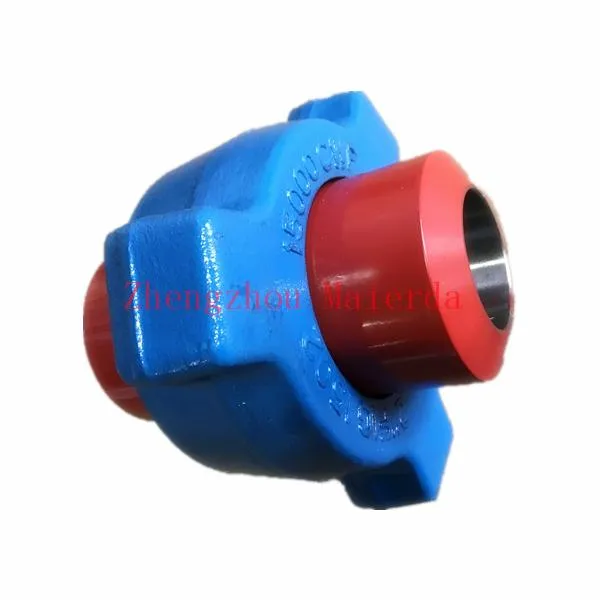

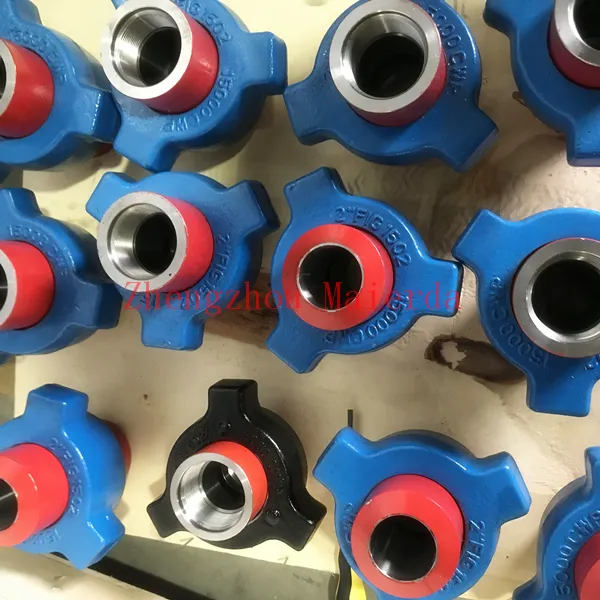

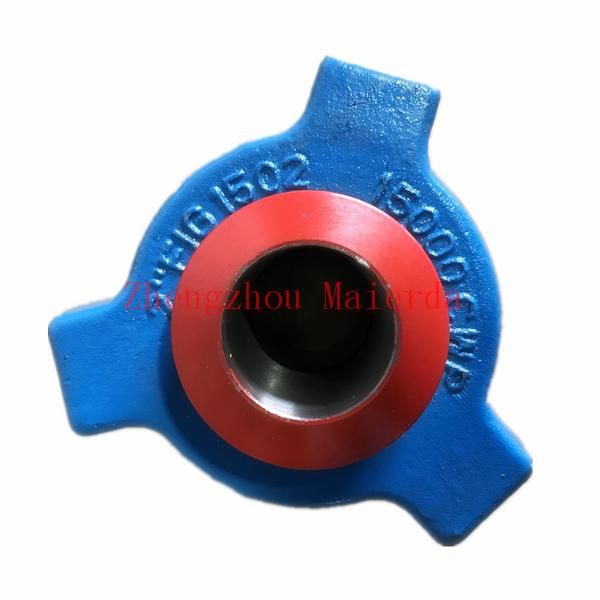

FIG 1502 API Butt Welded Hammer UnionFIG 1502 Hammer Union is designed to connect mud tanks immediately without having to deal with flange connections. If the storage tank is not aligned in the correct way, the necessary hammer union can still be used to ensure an absolute leak-free seal. FIG 1502 Hammer Union usually consists of three parts: male, female and nut.
Specification
They are provided with the replaceable elastic nitrile rubber sealing ring and designed for high pressure system with the solid wall thickness.
FIG 1502 Hammer Union is recommended for cementing, crushing, acidifying, testing and blocking and kill line, and it can also be used for non-pressure sealed connection. Butt-welded Sch XXH is adopted.
Type 1502: 1500PSI NSCWP; Test pressure: 22500PSI; Blue nut and red part.
Product Details
| Nominal pipe size | Total length | Countersink | Nut radius | Material | Weight | ||||||
| Nut | Part | ||||||||||
| in | mm | in | mm | in | mm | in | mm | lb | kg | ||
| 1-1/2 | 38.1 | 5-13/32 | 137.0 | 1/4 | 6.4 | 3-21/32 | 93.0 | SF | SF | 12.0 | 5.4 |
| 2 | 50.8 | 7 | 177.8 | 15/64 | 6.0 | 3-3/4 | 95.3 | SF | SF | 21.0 | 9.5 |
| 3 | 76.2 | 7-5/8 | 193.7 | 3/8 | 9.5 | 4-1/2 | 114.3 | SF | SF | 31.0 | 14.1 |
| 4 | 101.6 | 8-3/5 | 218.4 | 3/8 | 9.5 | 6 | 152.4 | SF | SF | 74 | 33.7 |
