A234 WPB B16.9 72 Inch Pipe Fitting Barred Tee
Production Introduction

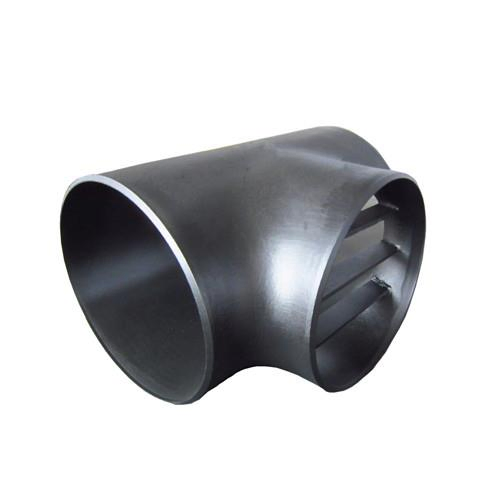

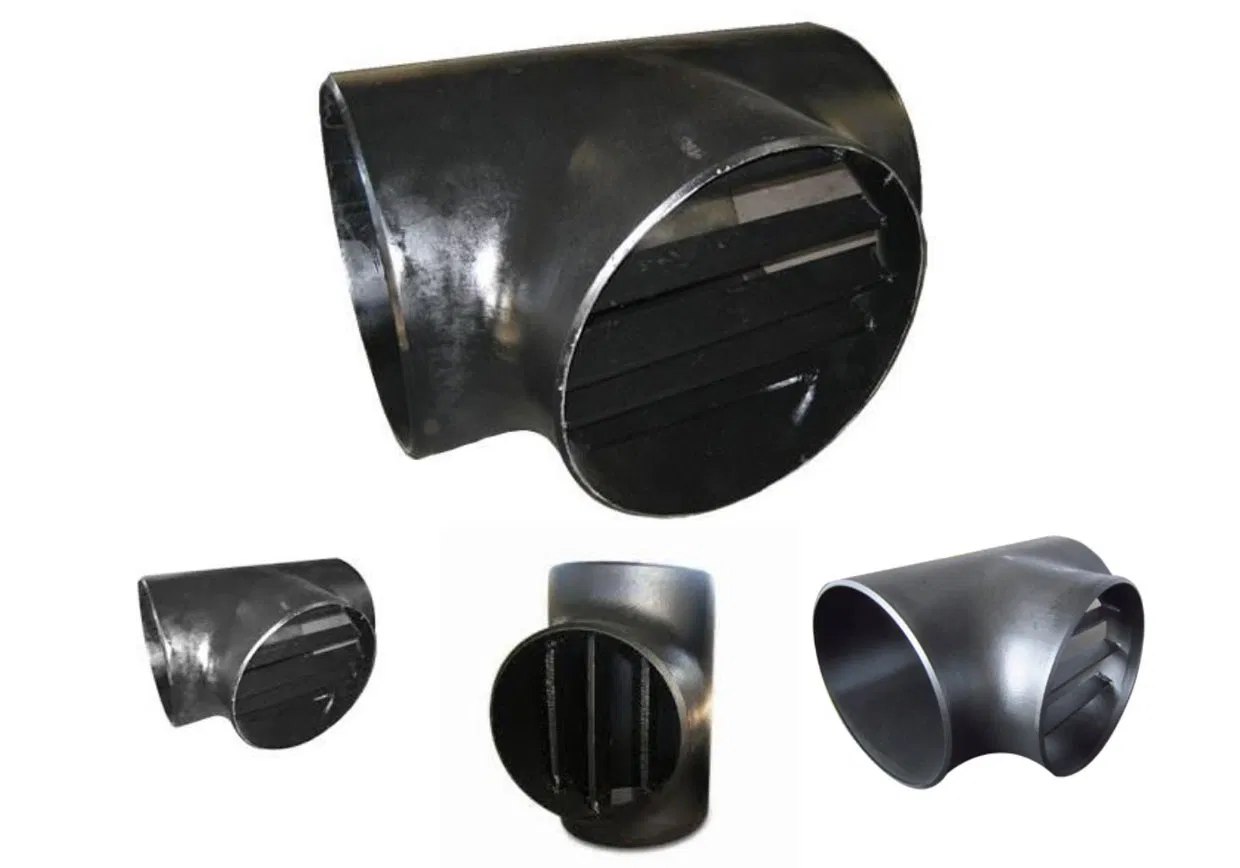

Barred Tee is a special type of tee that base from a normal tee (can be either equal tee or reducing tee) that at later stage, will be added with bar plates inside the branch outlet (From inside it looks like a steel cage) to restrict the pig from flowing from the header pipe into the branch pipes.
In these standard Grade WPB is the most common material used for medium and high temperature pipelines. W means weldable, P means pressure, B is grade b, refer to the minimum yield strength.
The source raw material of ASTM A234 WPB steel pipe fittings may be from steel pipe, such as ASTM A106 Gr.B and C. Also from steel plate, as ASTM A285 Gr.C, ASTM A516 Gr 70, ASTM A572 etc.

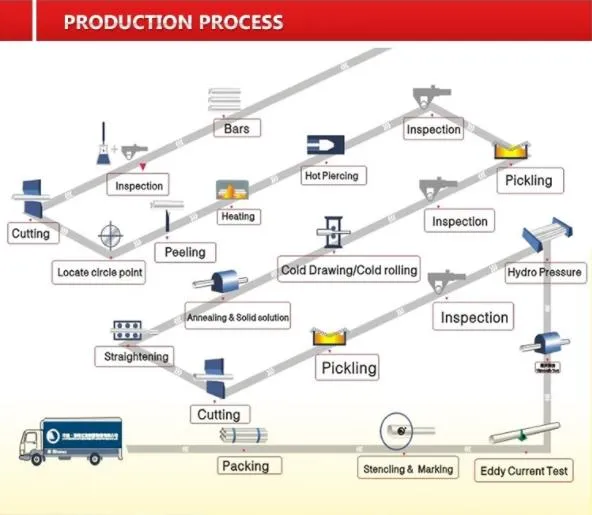

Production process
Production Introduction

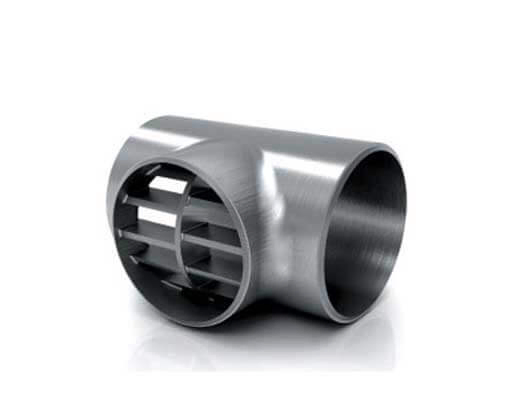

Barred Tee is a special type of tee that base from a normal tee (can be either equal tee or reducing tee) that at later stage, will be added with bar plates inside the branch outlet (From inside it looks like a steel cage) to restrict the pig from flowing from the header pipe into the branch pipes.
ASTM A234 / A234M - 19
Standard Specification for Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service
ASTM A234 specification has many grades, such as WPB, WPC, WP5, WP9 WP11, WP12, WP22, WP91 and so on.In these standard Grade WPB is the most common material used for medium and high temperature pipelines. W means weldable, P means pressure, B is grade b, refer to the minimum yield strength.
The source raw material of ASTM A234 WPB steel pipe fittings may be from steel pipe, such as ASTM A106 Gr.B and C. Also from steel plate, as ASTM A285 Gr.C, ASTM A516 Gr 70, ASTM A572 etc.
| Steel grade | Chemical composition(%) | ||||||
| C | Mn | P | S | Si | Cr | Mo | |
| WPB | 0.30 max | 0.29-1.06 | 0.05 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| wPC | 0.35 max | 0.29-1.06 | 0.05 | 0.058 | 0.10 min | 0.40 max | 0.15 max |
| WP1 | 0.28 max | 0.30-0.90 | 0.045 | 0.045 | 0.10-0.50 | 0.4 max | 0.44-0.65 |
| WP12 CL1, WP12 CL2 | 0.05-0.20 | 0.30-0.80 | 0.045 | 0.045 | 0.60 max | 0.80-1.25 | 0.44-0.65 |
Production process
